| Brand Name: | ETTO / OEM / ODM / SKD / CKD |
| Model Number: | TT43 |
| MOQ: | 1 Piece |
| Price: | NA |
| Payment Terms: | T/T, L/C, PayPal, Visa, Western Union |
| Supply Ability: | 400 Pieces/Day |
| Feature | 43-inch Model | 55-inch Model |
|---|---|---|

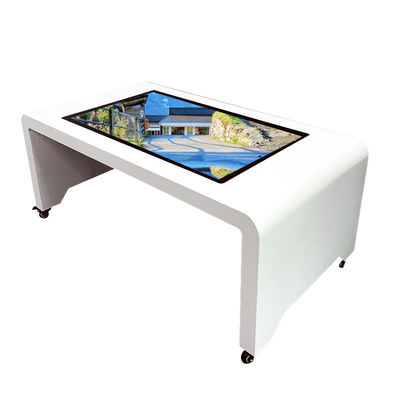

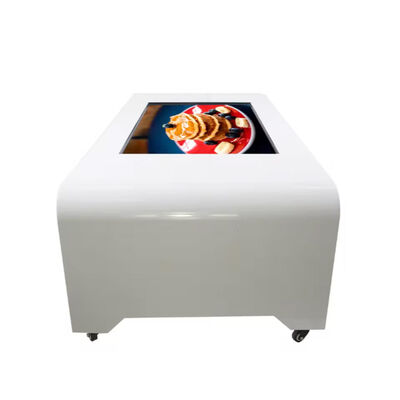

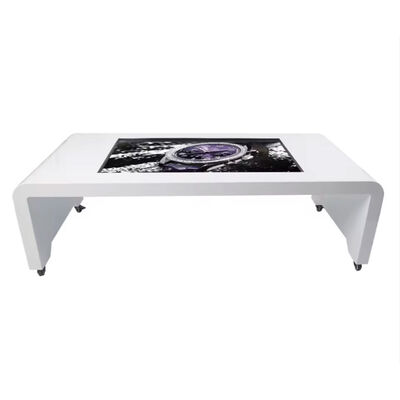

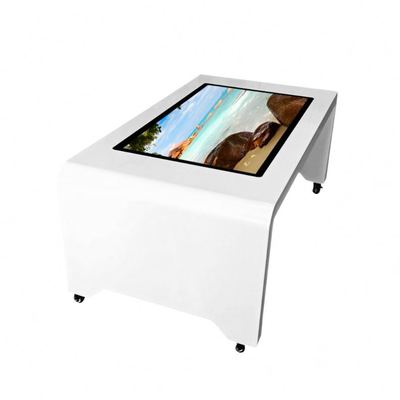

| Size | 43-inch Table digital signage with Touch | 55-inch Table digital signage with Touch |
| OS Functions | ||
| OS system | Android 6.0 | |
| Chipset | Rockchip RK3288 Quad-core processor | |
| RAM | 2G NAND-Flash 8GB | |
| Decoding resolution | Up to 1080P | |
| Play mode | cycle, insert and timing | |
| Networking support | Ethernet, Wi-Fi | |
| Video format | WMV, AVI, FLV, RM, RMVB, MPEG4, MPEG, TS, MP4 etc | |
| Picture format | BMP, JPG, JPEG, PNG, GIF | |
| RTC timing clock | support | |
| Timing on & off | support | |
| OS update | USB update | |
| OSD | English/optional | |
| Multi-point Touch | ||
| Touch Technology | Capacitive touch | |
| Touch Points | 10 Points | |
| Picture/Display | ||
| Panel | 43" | 55" |
| Max resolution | 1920*1080 (pixels) | |
| Brightness (type)/(min) | 350cd/㎡ (typ.) | |
| Ratio (type)/(min) | 1200:1 (typ.) | |
| Chroma | 16.7M | |
| Response time (ms) | 8ms(typ.) | |
| Viewing area | 941.184×529.416mm | 1209.6×680.4mm |
| Viewing angle | 178°(H)/178°(V) | |
| Life time(type)/(min) | 30,000 hrs(typ.) | |
| Environment | ||
| Working temperature | 0℃~40℃ | |
| Working humidity | 20%~85% RH/n-Condensing | |
| Storage temperature | -10℃~60℃ | |
| Storage humidity | 10%~60% RH/n-Condensing | |
| Max.display hour/day | 18 hours | |
| Power | ||
| Power supply | 100-240V, 50-60 Hz | |
| Power consumption (Watt) | ≤90W | ≤140W |
| Audio frequency output | left and right channels Speaker 5W*2 | |
| Connectivity (I/O) | ||
| Power connection | *1 | |
| HDMI | *1 | |
| RJ45 | *1 | |
| USB 2.0 | *1 | |
| ID and Material | ||
| Housing Material | Aluminum frame+tempered glass+metal | |
| Housing colour | black/white/optional | |
| Weight | ||
| Net weight | 38kgs | 50.5kgs |
| Gross weight | 42kgs | 55.5kgs |
| Package dimension/Carton box | ||
| Body dimension | 1650*760*508mm | 1600*910*208mm |
| Accessory | ||
| Antenna | *1 | |
| Remote Control | *1 | |
| Power Cord | *1 | |
| Trundle | *4 | |
